We are Manufacturer, Supplier of Weld Overlay Cladding Station, Horizontal Weld Overlay Cladding Station, Vertical Weld Overlay Cladding Station and our setup is situated in Pune, Maharashtra, India.

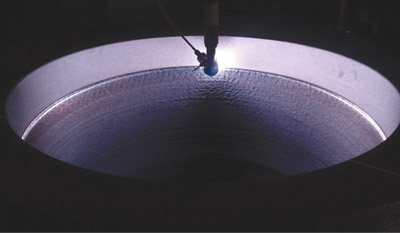

Overlay welding generally means applying an extra layer to metal base material using a welding procedure with the objective of achieving a higher wear resistance against abrasion, erosion, cavitation and correction.
Weld overlays is needed in a number of industry sector where service conditions require corrosion resistant properties. The highly versatile welds overlay combination of readily available base materials, coated with a suitable corrosion resistant alloy to protect any given area. This provides the benefit of cost savings, as well as a reduction in lead time.
- Higher production rate because of continues processing
- Fully automatic PLC controlled station with spiral, circular overlay with step increment.
- Servo controlled rotary and linear axes for precise positioning and restart of arcing from same point in case of power failure.
- AVC ant auto pulsing facilities
- Programming and storage facilities for all parameters.
- Reduce human error factors & less physical stain on welders especially on long welding/ cladding process.
- Higher quality and productivity, especially with long duration welds
- Lower processing coast
- Weld overlay is used for corrosion resistance or ware resistance and can be applied to extend the service life of new parts.
- The oil and gas industry is very familiar with the use cladding to mitigate corrosion in pipelines, flanges and other components.
- 6" pipe can also be cladding on our system
- Twin torch provision for cladding operation to reduce the time.
Weld overlay system divided into three different segments
- HORIZONTAL WELD OVERLAY CLADDING STATION
- VERTICAL WELD OVERLAY CLADDING STATION
- UNIVERSAL WELD OVERLAY CLADDING STATION

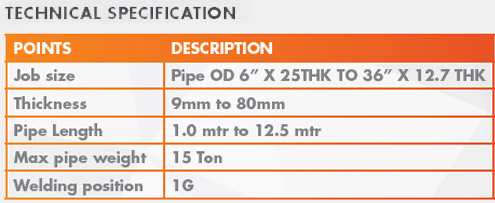

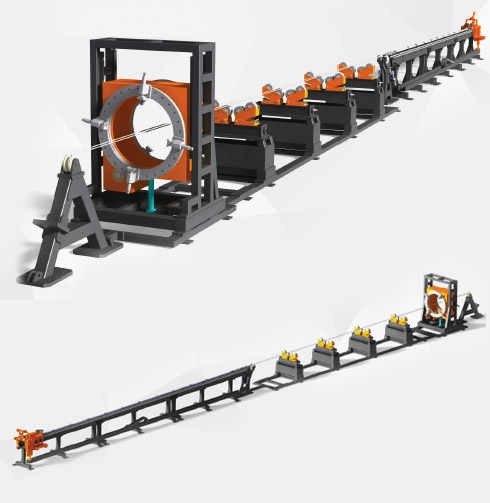

Horizontal Weld Overlay Cladding Station
- To carryout CRA weld Overlay inside pipe

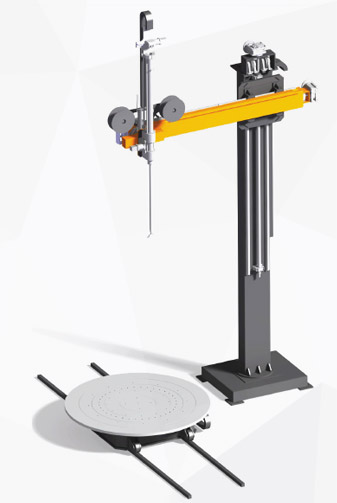

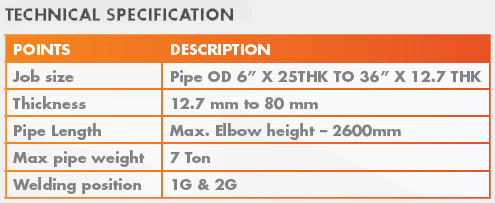

Vertical Weld Overlay Cladding Station
Anvin offer fully automated TIG cladding welding systems for vertical valve-cladding applications. Complete turnkey packages include a wire-feed unit as well as a standard torch-programmable, cold-wire pulsed TIG welding power source with an optional hot-wire system available for applications where higher deposition rate are required.
- To carryout CRA spiral, circular and step increment wed overlay inside of pipe fitting and flanges, i.e. Pipe elbow, Tee, Reducer, Cap, Valve, profile, etc.

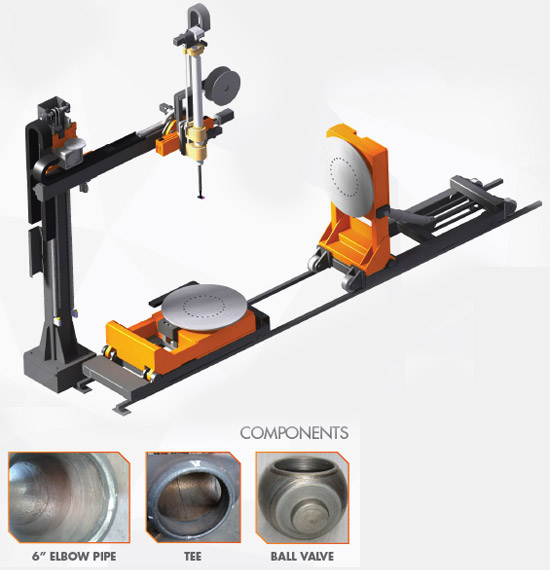

Universal Weld Overlay Cladding Station
This is a fusion of Vertical and Horizontal weld overlay station. It is an unique Cladding station where in one can clad almost all kind of components. The structure comprises if XYZ slide and 2 rotators.
- All Ac servo motors
- Base and bore cladding
- Auto AVC section for ID & OD
- Waving if required for face cladding
- AVC in bore and base
- Auto speed compensation for taper bore and face cladding
- Boom Up / Down Limit switch
- Virtual pendent on HMI
