We are Manufacturer, Supplier of Material Transfer Trolleys and our setup is situated in Pune, Maharashtra, India

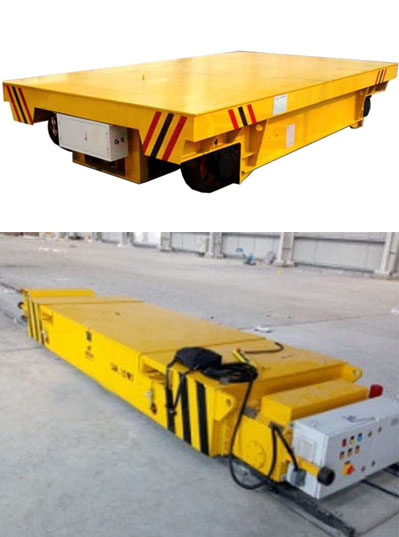

Anvin has a wide range of Industrial Transfer Cars Trolley to suit the job and application. This Motorized Transfer Trolley is used on Rail / Square bar for definite travel in Painting shops, Warehouses and multi-bay workshops for transferring loads. The Trolleys are non-standard and designed considering pay load. Various parameters for considering the pay load include the Dimension of the load, Point Loading / U.D.Load, Speed, Length, Width & Height. The Structure is made out of IS-2062 M.S. structural steel and wheels are made from Alloy steel to suit the load and profile of Rail /Square Bar. The top platform can be a chequered plate - Plain or with a turning table in paint shop or with perforated sheets, depending upon the application. Power feeding is done through Cable Reeling Drum, Insulated Shrouded System and Contactors Power Systems.

Applications

  • Steel Yards : Plates/ Billets / Bars/Coils etc. Handling Molten Metal Ladle Painting Shop
  • Shipyards
  • Transfer within Sheds etc.
  • Turn Table
  • Workshops



Technical Information
Sr. No. MODEL CARRYING CAPACITY
(Kg)
TABLE HEIGHT
(MM)
MAX. TABLE LENGTH
(MM)
1 AT-1 1000 450 2000
2 AT-2 2000 450 2500
3 AT-5 5000 500 3000
4 AT-10 10000 500 3500
5 AT-25 25000 600 4500
6 AT-50 50000 750 5000
